Injection Moulding Part Design
That Moulds First Time
Specialist injection moulding part design using SolidWorks Premium — with 30 years of plastics manufacturing experience built into every design. Draft angles, wall thickness, gate location, and DFM principles are not an afterthought; they are the starting point.
What Is Injection Moulding Part Design?
Injection moulding part design is the process of engineering a plastic component so that it can be reliably produced in an injection mould tool — at volume, with consistent quality, and without expensive tool modifications after the first shots.
It requires more than CAD modelling. A well-designed injection moulded part accounts for draft angles, uniform wall thickness, rib geometry, gate location, parting line position, shrinkage, and ejection — all before a single line of tool steel is cut. Getting these wrong means sink marks, warpage, short shots, weld lines in the wrong place, and parts that stick in the tool.
Chris Birkett has 30 years of plastics manufacturing experience — starting as an apprentice toolmaker, progressing through CNC programming and CAD/CAM, and spending the last decade in the design office at Bericap, one of the world's leading injection moulding cap manufacturers. That background means every design is reviewed with the eyes of someone who has stood at the press and seen what goes wrong.
Why Work With a Specialist Designer?
Most injection moulding problems are design problems. A specialist injection moulding designer catches them before they become tooling costs.
DFM Built In From Day One
Design for Manufacture principles are applied from the first sketch — not reviewed at the end. Draft angles, wall thickness, and gate location are planned before the model is built.
No Sink Marks or Warpage
Sink marks and warpage are caused by design decisions — thick sections behind ribs, non-uniform walls, and poor gate location. These are identified and resolved at the design stage.
Reduced Tooling Costs
Tool modifications are expensive. A design that is right first time saves significant cost — typically 5–10× the design fee in avoided tool rework and delayed production.
SolidWorks Premium
All injection moulding designs are produced in SolidWorks Premium — the industry standard for plastic part design. Full STEP, IGES, and native SolidWorks files are supplied.
Direct Access to the Designer
You work directly with Chris Birkett — not a project manager or account handler. Direct communication means faster decisions, fewer misunderstandings, and better outcomes.
30 Years Manufacturing Experience
Starting as an apprentice toolmaker and spending the last decade designing injection moulded caps at Bericap, Chris brings real shop-floor knowledge to every design decision.
The Injection Moulding Design Process
A structured, DFM-led process that takes your plastic part from concept to production-ready design package — with no surprises at the toolmaking stage.
Design Brief & Requirements
We start with your product requirements — function, dimensions, assembly method, surface finish, material preferences, and production volumes. A thorough brief prevents costly late-stage changes.
3D Part Design in SolidWorks
The plastic part is modelled in SolidWorks Premium with injection moulding in mind from the first sketch. Wall thickness, rib geometry, boss design, and parting line are all considered at the concept stage.
Design for Manufacture (DFM) Review
Every design is reviewed against DFM principles: draft angles (typically 1–3°), uniform wall thickness, rib-to-wall ratios, gate location, and weld line positioning — before any tooling is commissioned.
Sink Mark & Weld Line Analysis
Using SolidWorks and DFM experience, potential sink marks (from thick sections behind ribs and bosses) and weld line positions are identified and designed out — saving expensive tool modifications later.
Technical Drawings for Toolmaking
Full dimensioned technical drawings are produced for the part and tool, ready to hand directly to your toolmaker. All critical dimensions, tolerances, and surface finish requirements are clearly specified.
Production-Ready Design Package
You receive a complete package: SolidWorks files, STEP/IGES exports, technical drawings, and a DFM report — everything your toolmaker and moulder needs to go straight into production.
Injection Moulded Part Examples
Examples of injection moulded plastic parts across key industries — each designed with DFM principles, correct draft angles, and production-ready geometry.

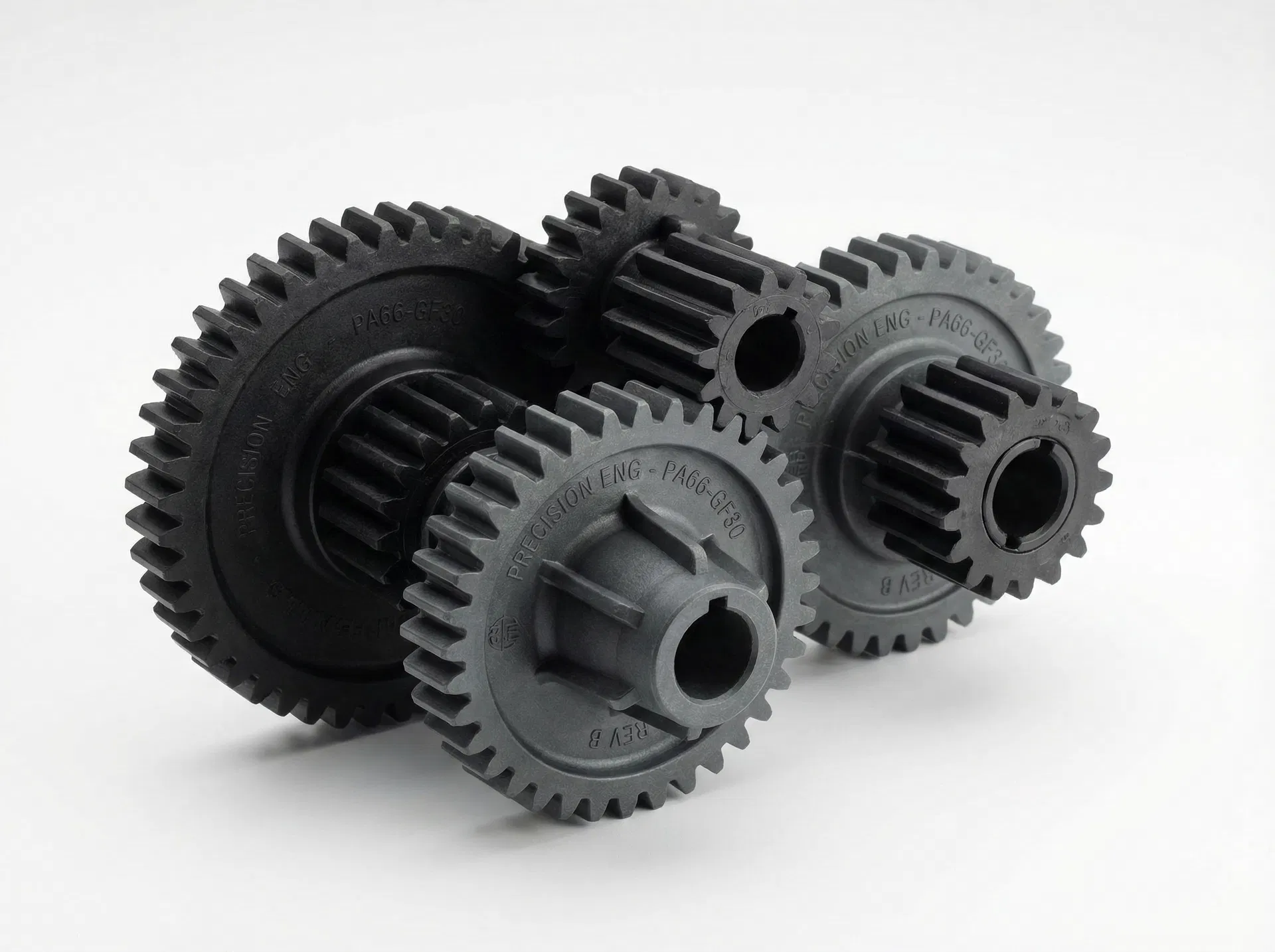

Mechanical Gear Assemblies
Precision injection moulded PA66-GF30 gear sets with tight tooth tolerances, hub features, and correct draft angles — designed for high-cycle mechanical applications.
Automotive Structural Parts
Glass-filled nylon brackets and structural components with optimised rib geometry, mounting bosses, and correct draft angles for reliable demoulding.

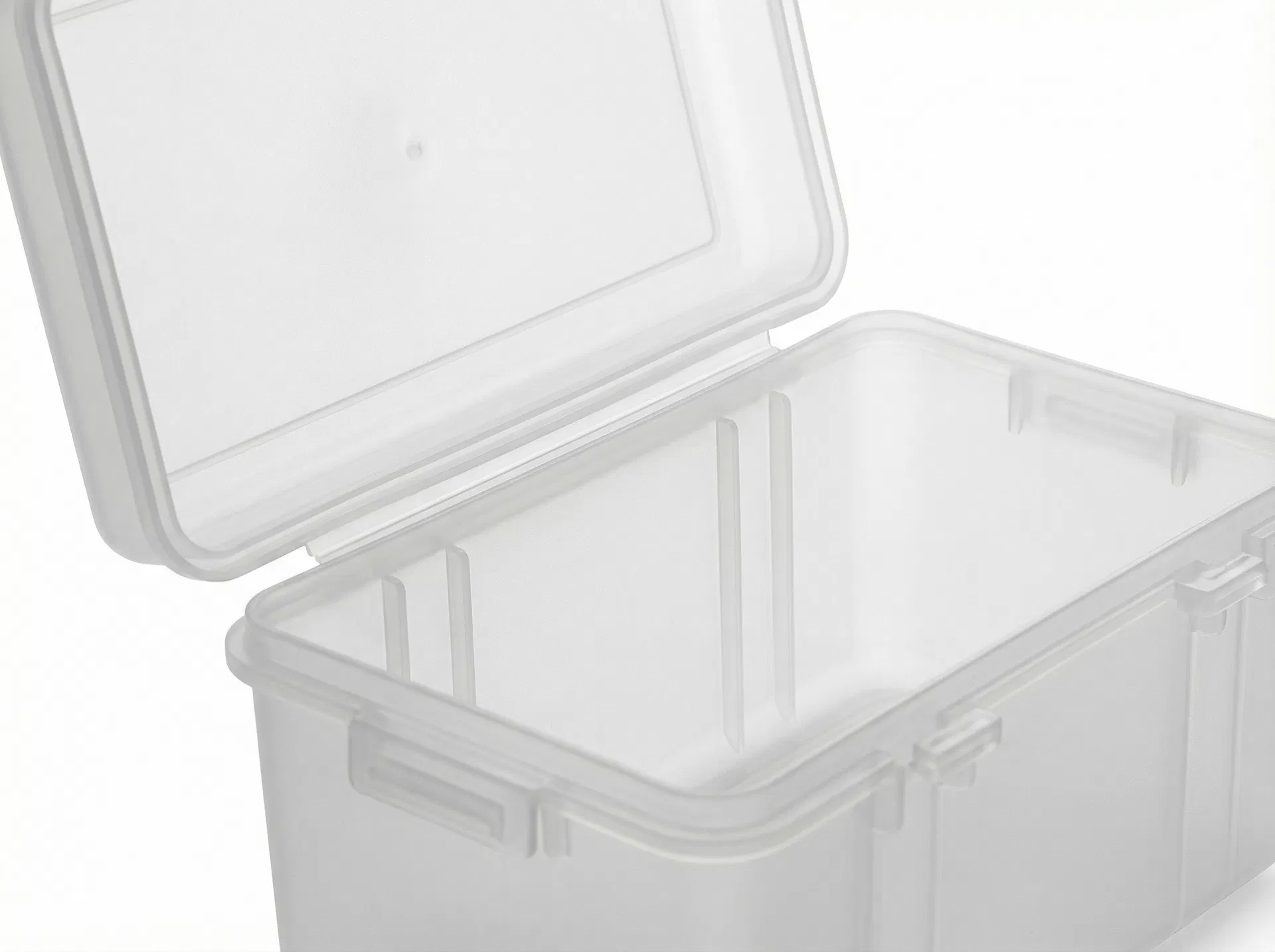

Living Hinge Containers
Polypropylene living hinge containers with integral thin-section hinge, snap-fit closure clips, and internal rib structure — designed for millions of open/close cycles.
Industrial Pipe Fittings
Complex injection moulded industrial fittings with brass insert moulding, multi-port geometry, and precision thread forms — designed for pressure applications.
Packaging & Containers
Clear PET and PP injection moulded containers with snap-fit lids — designed for food-safe applications with optimised gate location and minimal weld line visibility.

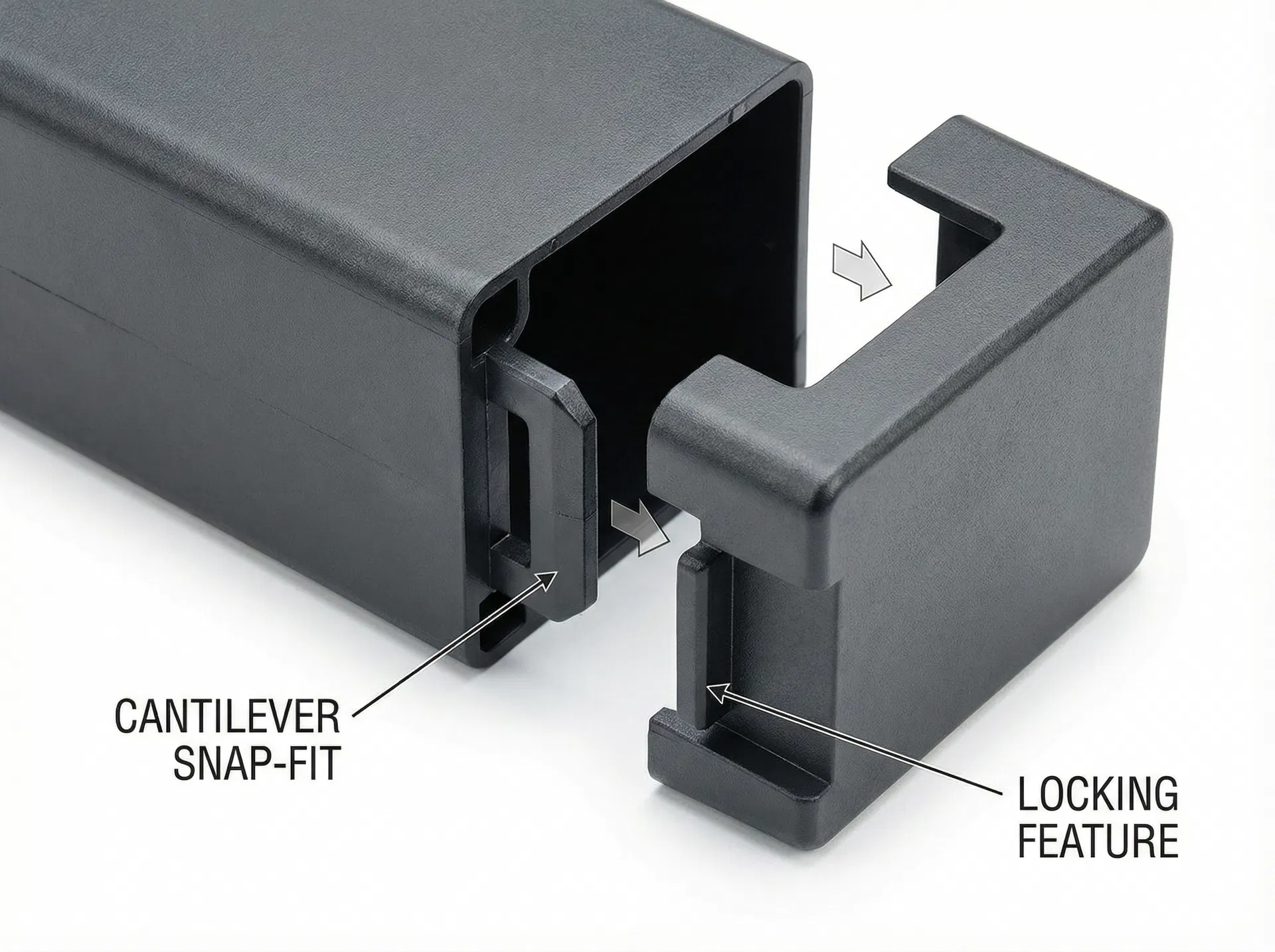

Snap-Fit Assembly Components
ABS cantilever snap-fit assemblies with precision locking features and controlled deflection geometry — designed for tool-free assembly and reliable retention force.
Key Injection Moulding Design Considerations
These are the critical design parameters that determine whether an injection moulded part produces cleanly, consistently, and at cost — every one is addressed in every design.
Draft Angles
Minimum 1° draft on all vertical walls — typically 2–3° for textured surfaces. Insufficient draft causes the moulded part to stick in the tool, leading to ejector pin marks, distortion, and scrap.
Wall Thickness
Uniform wall thickness (typically 1.5–4mm depending on material) prevents sink marks, warpage, and differential shrinkage. Abrupt thickness changes are avoided or transitioned with tapers.
Sink Marks & Ribs
Ribs add stiffness without adding wall thickness, but poorly designed ribs cause sink marks on the opposite face. Rib thickness should be 50–60% of the nominal wall thickness to prevent this.
Gate Location
Gate position controls where the plastic enters the tool and directly affects weld line location, surface finish, and fill balance. Gate location is planned at the design stage, not left to the toolmaker.
Undercuts & Side Actions
Undercuts require side actions or lifters in the tool, adding cost and complexity. Every design is reviewed to eliminate unnecessary undercuts or design them in where side actions are justified.
Shrinkage & Tolerances
All plastics shrink as they cool. Shrinkage rates (0.3–2.5% depending on material) are factored into the tool dimensions. Critical tolerances are identified early to determine if they are achievable.
Common Injection Moulding Plastics
Material selection affects shrinkage, draft angle requirements, surface finish, and tooling cost. The right material is selected at the design stage, not as an afterthought.
Living hinges, containers, automotive trim, medical
Consumer electronics, housings, automotive interiors
Structural parts, gears, automotive, glass-filled grades
Optical parts, machine guards, high-impact housings
Precision gears, bearings, snap-fits, fuel system parts
Chemical containers, pipes, food-contact parts
Clear packaging, food containers, beverage caps
Soft-touch grips, seals, over-moulded components
Industries Served
Injection moulding part design for a wide range of sectors — each with its own material requirements, tolerances, and regulatory considerations.
Consumer Products
Housings, enclosures, packaging, lifestyle goods
Medical & Healthcare
Device housings, diagnostic equipment, disposables
Automotive
Interior trim, brackets, fluid system components
Electronics
PCB enclosures, connector housings, cable management
Industrial & Engineering
Pipe fittings, valve bodies, structural brackets
Food & Beverage
Caps, closures, containers, dispensing systems
Injection Moulding vs Thermoforming
Not sure which process is right for your part? Both processes are covered by Birkett CAD Services — here's a quick comparison to guide the decision.
| Factor | Injection Moulding | Thermoforming |
|---|---|---|
| Tooling Cost | High (£5k–£100k+) | Low–Medium (£500–£15k) |
| Part Complexity | Very High — undercuts, threads, inserts | Moderate — single-surface geometry |
| Wall Thickness | Uniform, 1.5–4mm typical | Variable — thins at draw points |
| Volume | High volume (10,000+ parts) | Low–medium volume (100–50,000) |
| Surface Finish | Class A both sides possible | Class A one side only |
| Materials | Wide range — 20,000+ grades | Sheet materials — HIPS, ABS, PET, PP |
| Lead Time | 8–16 weeks for tooling | 2–6 weeks for pattern/tool |
| Best For | Complex, high-volume plastic parts | Trays, packaging, covers, enclosures |
Need thermoforming pattern design instead?
View Thermoforming Design ServicesInjection Moulding Design FAQs
Common questions about injection moulding part design, DFM, and how to get started.
Ready to Design Your Injection Moulded Part?
Get a free DFM consultation with Chris Birkett — 30 years of plastics manufacturing experience, direct access, no project managers. Based in Brough, East Yorkshire.
Free initial consultation · No obligation · Based in Brough, East Yorkshire
